LMxxx

Turnkey diode laser up to 250W optical power. Also 445nm blue laser with 100W optical power

The LMxxx is a turnkey diode laser with internal monitoring and security technology with an optical power of up to 250W

  • Glass fiber diameter from 100 µm to 800 µm
  • Wavelengths: 808nm, 915nm, 940nm, 978nm
  • New: Blue laser (445nm) with 100W optical power
  • Analog 0-10V interface for laser power
  • Time constant 0.3ms
  • Safety technology - monitored start, internal-external emergency stop, remote start
  • Prepared for connection of the LASCON® controller and laser heads LH102, LH103 and LH501
  • Installed in industrial housing 19 “- 4U

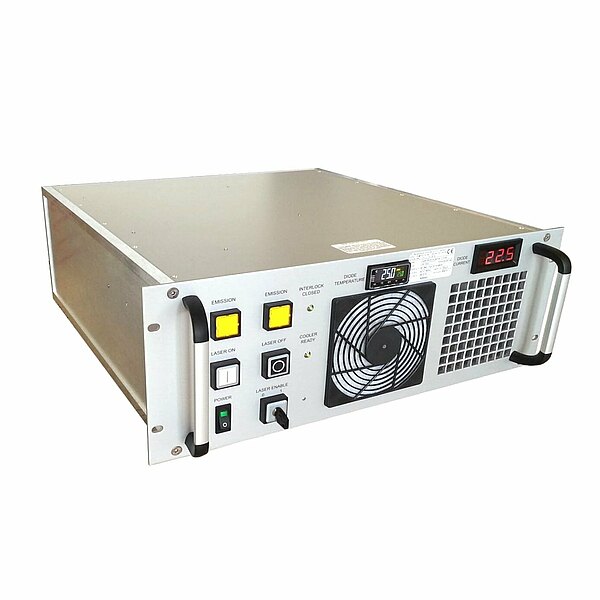

  • High Power Diode Laser LMxxx

    High Power Fiber Coupled Diode Laser


  • LMxxx Backplane

    Turn Key High Power Fiber Coupled Diode Laser

Turnkey fiber-coupled diode laser with internal monitoring and integrated thermoelectric (Peltier) cooler up to 250W

Mergenthaler fiber-coupled high power diode laser systems are a cost-effective solution for easy integration into machines and systems.
The high brightness diode laser systems are offered with fiber diameters from 100 µm to approx. 800 µm.

Various wavelengths of 808nm, 915nm, 940nm and 980nm for laser powers up to 250W are available. The typical service life of the diode laser is around 20,000 hours. We are now also offering blue, air cooled lasers with a wavelength of 445nm and 100W light output in 200µm fiber for laser soldering with reduced reflection and improved process management.

  • Modular high power diode laser system: outputs from 25W - 250W
  • Fiber diameter 100 µm - 800 µm
  • Wavelengths 445nm , 808nm , 915nm , 940nm , 978nm , also selected for pumping
  • Analog 0-10V interface for laser power
  • Time constant 0.3ms
  • Safety technology - monitored start, internal-external emergency stop, remote start
  • Prepared for connection of the LASCON® controller and laser heads LH102, LH103 and LH501
  • Installed in industrial housing 19 “- 4U
  • All lasers can be equipped with a visible pilot light beam

Applications of the diode laser are selective laser soldering, laser plastic welding, laser heating, heating of substrates in a vacuum, preheating for thermal bonding and many other processes. Together with oursLaser heads and theLaser process controller LASCON® can easily be set up as a complete industrial production system.
